商品名稱

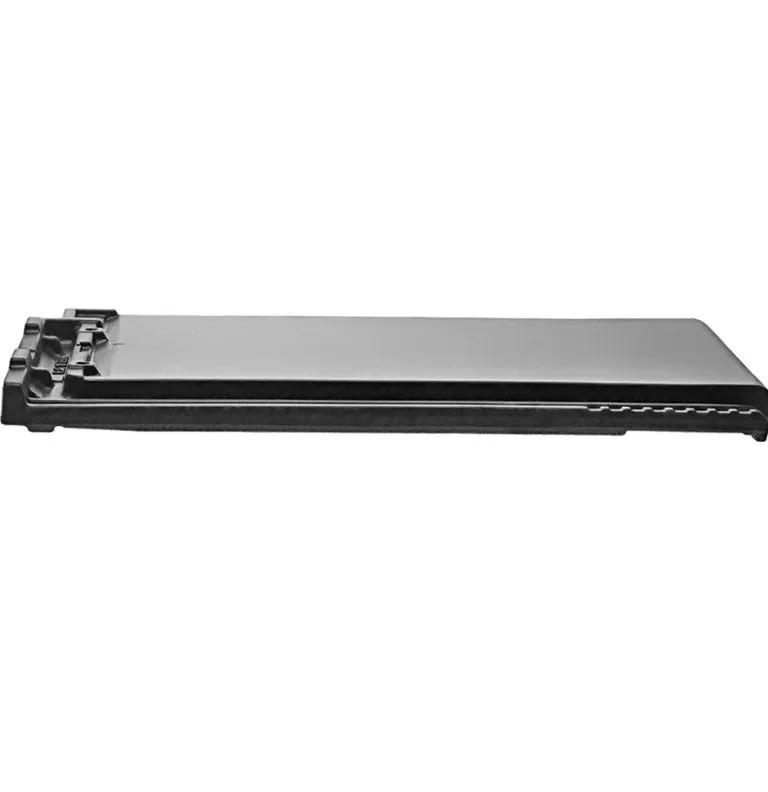

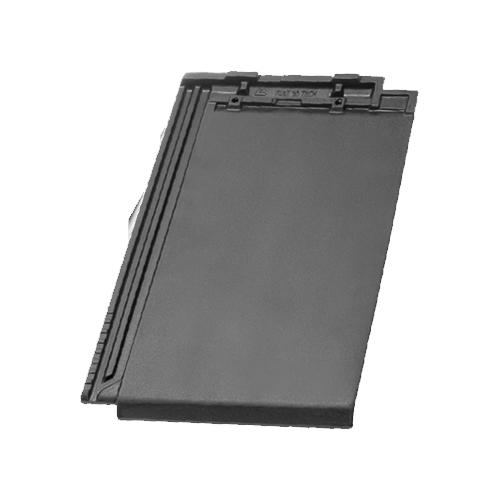

平板瓦 FLAT-10Tech

Series
適用於現代風、工業風或鄉村風建築，常見於中歐及中高緯度歐洲地區

瓦片長度: 475 mm
瓦片寬度: 285 mm
平方米重量: 34.65 /Kg
平方米使用量: 9.9 /片
有效寬度: 245 mm

產品規格:

瓦片長度: 475 mm

瓦片寬度: 285 mm

平方米重量: 34.65 /Kg

平方米使用量: 9.9 /片

有效寬度: 245 mm

BorjaTECH

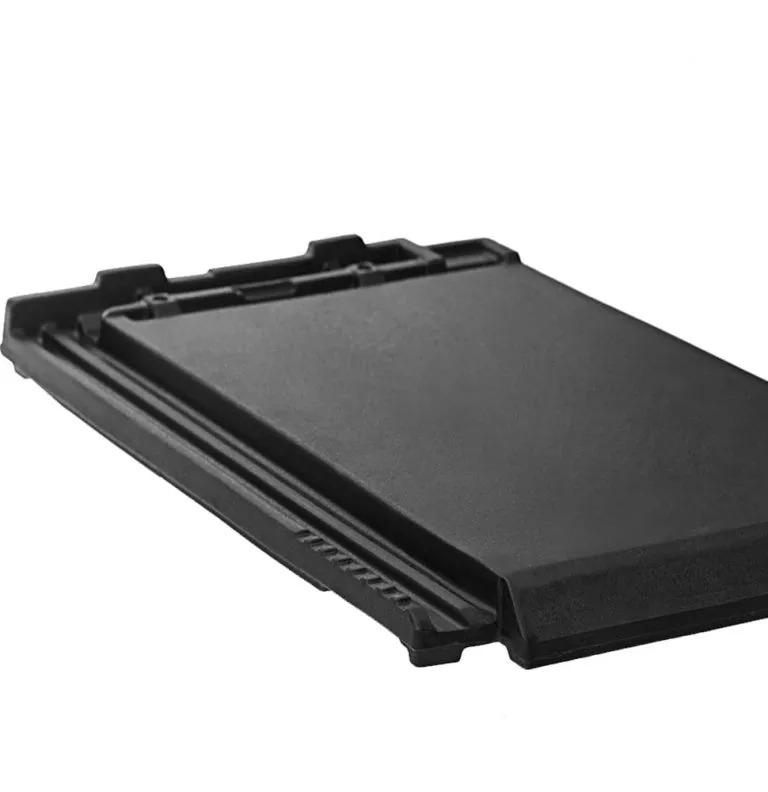

FLAT-10 Tech is a new generation of flat tiles now lighter and with greater definition. Its new deeper joins make this format the perfect choice for all kinds of projects. They can be used on any of the 5 continents in both sloping roofs and facades. Combined with BorjaJet finishes they give a singular character to any architectural design.

● Perfect, deep fit.

● Large format – 10 units per sq. m.

● Exclusive finishes BorjaJET.

● Lightweight.

The certified characteristics for the NF Terracotta tiles are : Structural faults, the geometric characteristics , resistance to flexural strength , impermeability , frost resistance for all products made with red mixture. AFNOR Certification: 11 rue Francis de Pressensé // 93571 LA PLAINE SAINT-DENIS CEDEX //www.marque-nf.com

Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE-EN 1024.

(*) In zone 1 (protected area), arranged in staggered formation with waterproof laminate and batten distance of 360 mm on a skirt of up to 6.5 m. Check pitch pannel according to the roof length and the geographical area according to UNE-EN 136020.

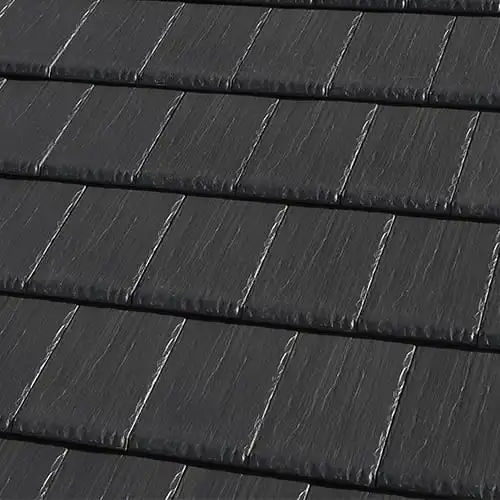

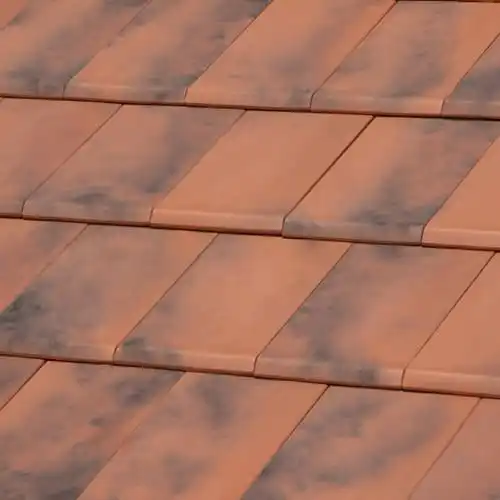

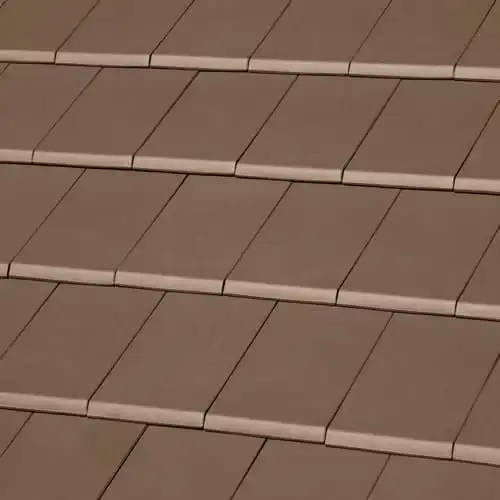

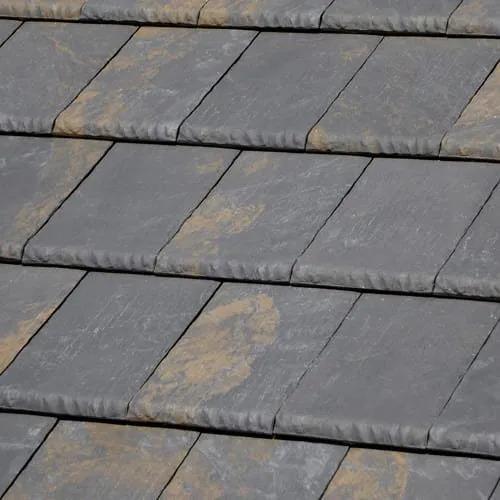

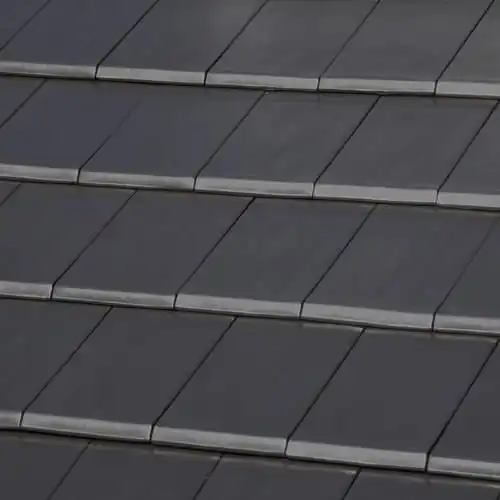

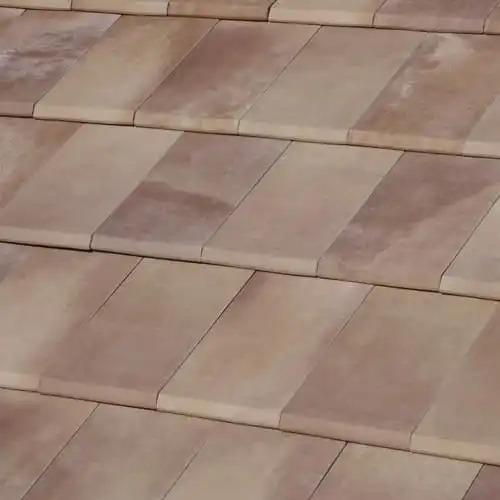

平板瓦-FLAT-10Tech 適用顏色
	FLAT-10Tech®

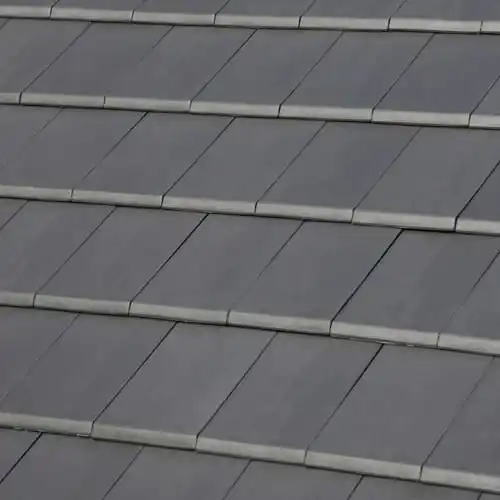

板岩系列

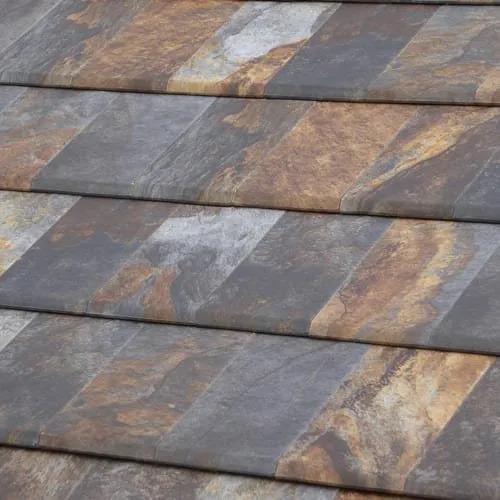

金風石	橘彩石

工業風系列

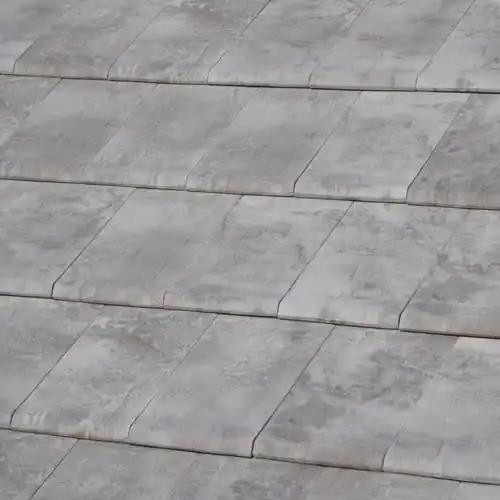

淡墨

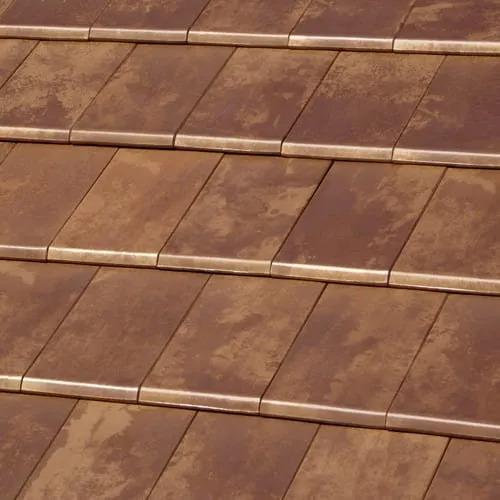

古銹系列

古銅

復古系列

彤岩

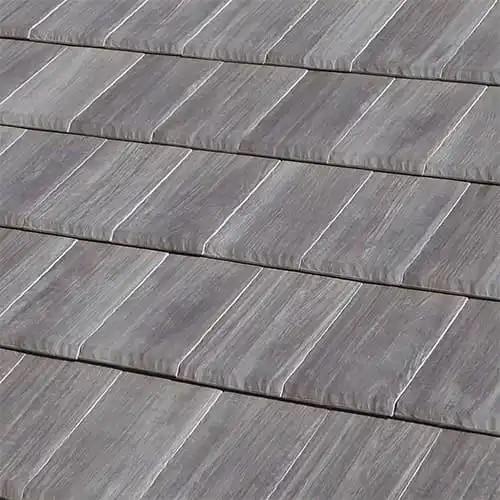

木紋系列

西洋杉	橡木紋

單色系列

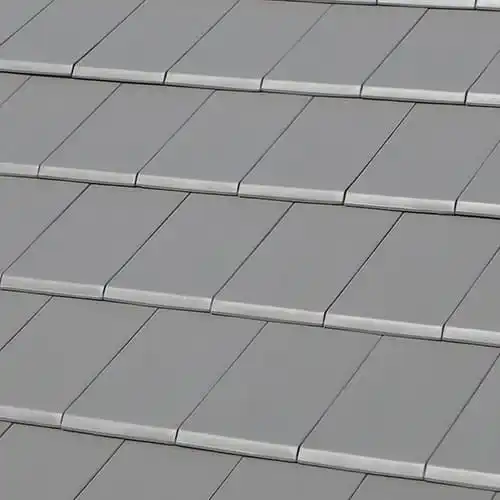

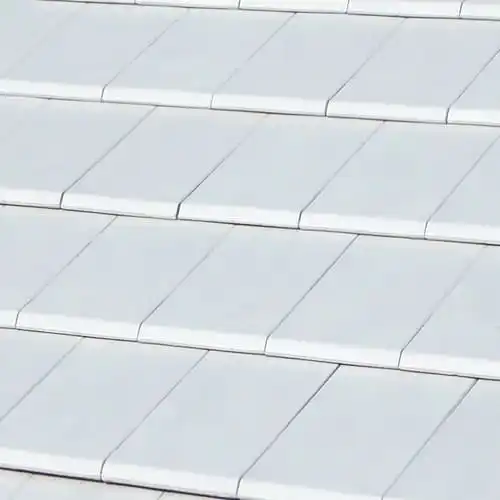

極地白	碳黑	石墨黑	鐵灰

咖啡	硯石黑

大地色系列

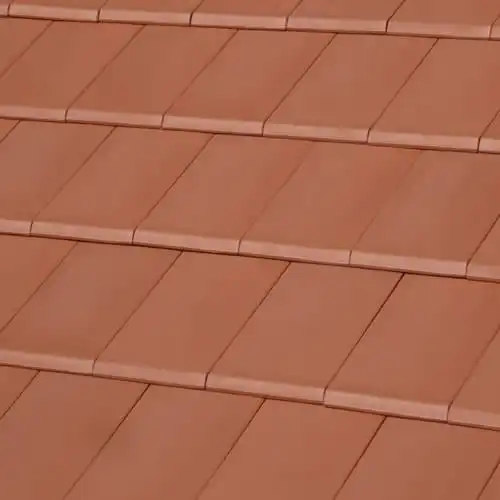

百年紅	歲月紅

平板瓦-FLAT-10Tech 適用配件
	FLAT-10Tech®

F型脊瓦

F型脊瓦	F型脊瓦頭	F型斜脊瓦頭

Low 100º 型脊瓦

F型 Low 100º 脊瓦	F型 Low 100º 脊瓦頭	F型 Low 100º 斜脊瓦頭

瓦邊

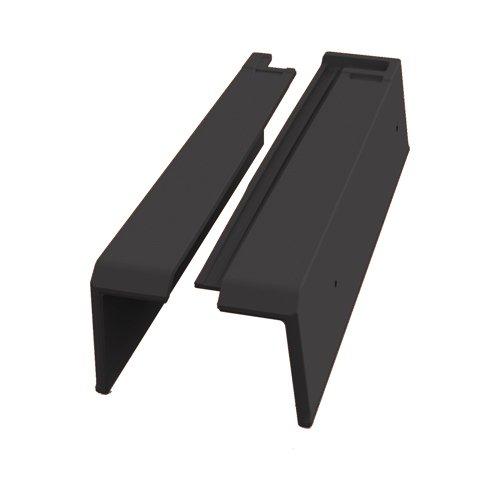

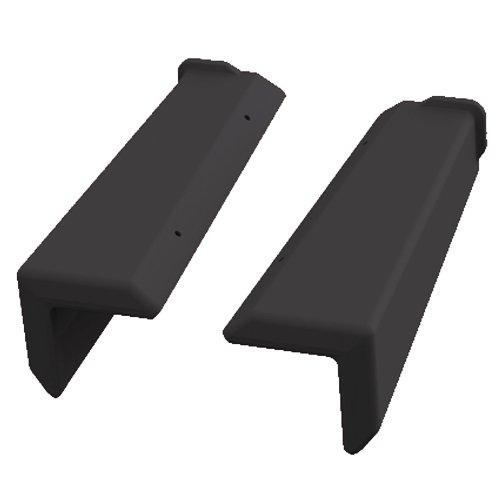

Flat-10Tech 直角邊瓦	直角邊瓦	共用邊瓦

半瓦

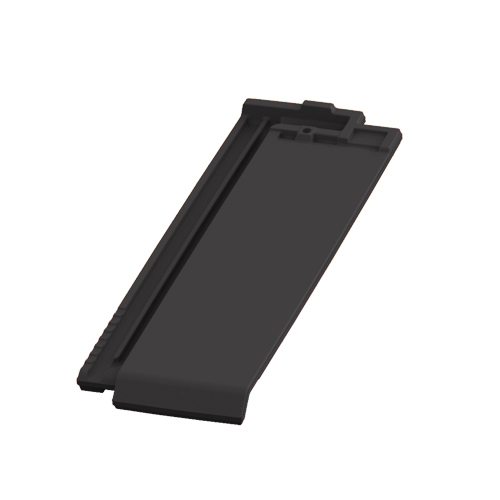

Flat-10Tech 半瓦

透氣瓦

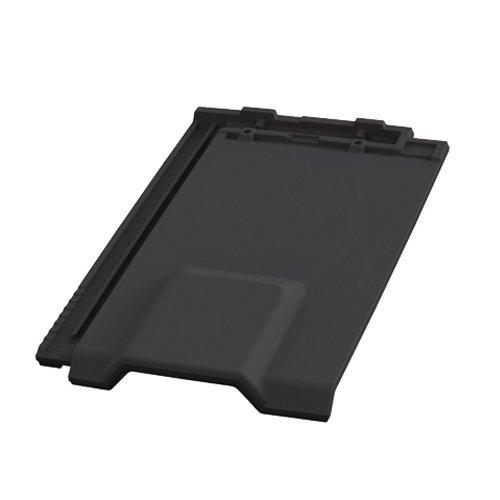

Flat-10Tech 透氣瓦

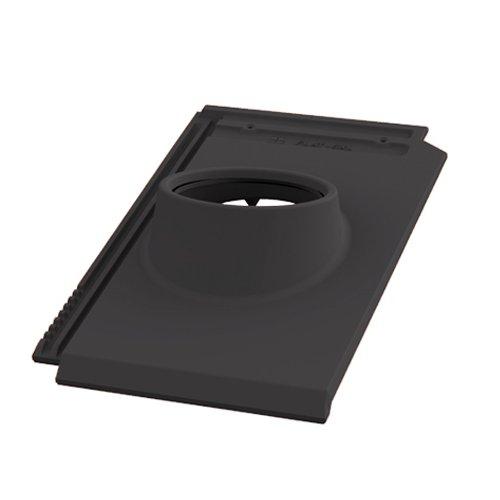

煙囪座

Flat-10Tech 煙囪座

煙囪

140 煙囪	透氣煙囪
