商品名稱

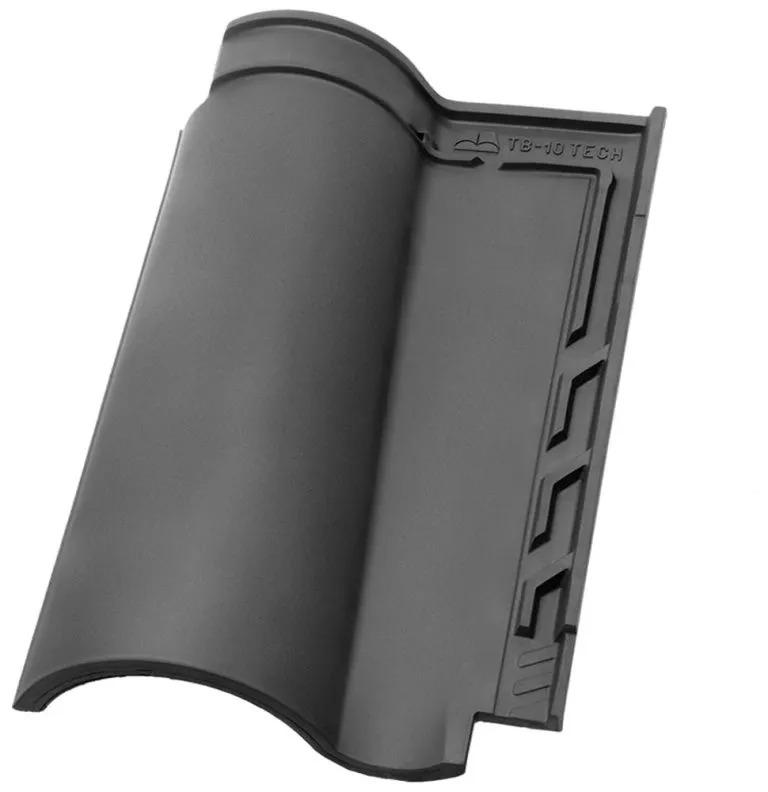

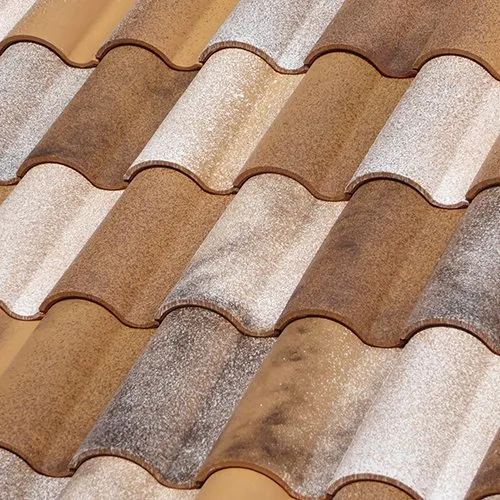

羅馬瓦 TB-10 Tech

Series
此瓦型源於羅馬時期，是南歐及地中海地區最典型的屋瓦

瓦片長度: 475 mm
瓦片寬度: 282 mm
平方米重量: 35.88 /Kg
平方米使用量: 10.4 /片

產品規格

瓦片長度: 475 mm

瓦片寬度: 282 mm

平方米重量: 35.88 /Kg

平方米使用量: 10.4 /片

BorjaTECH

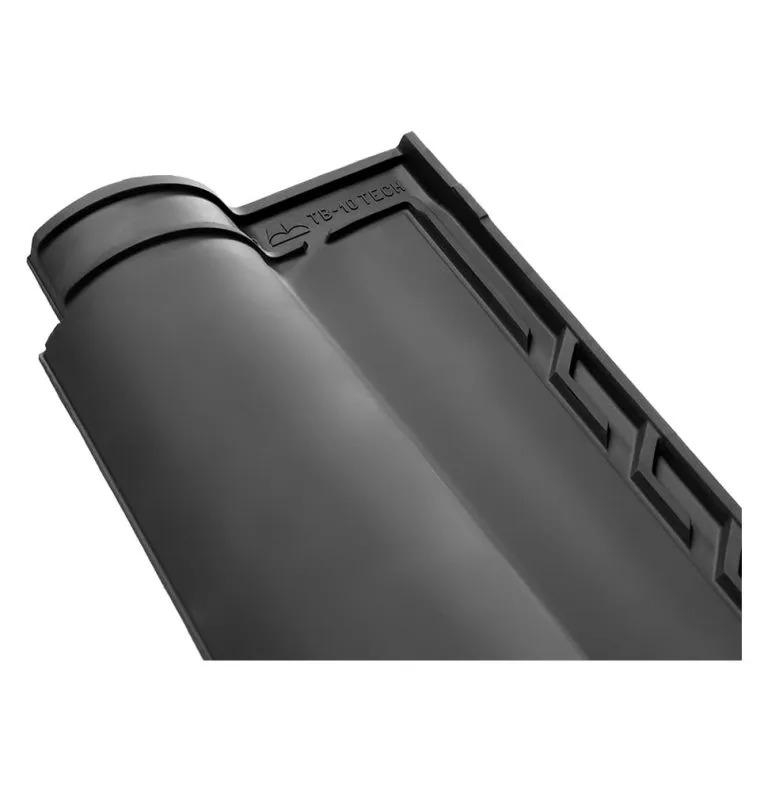

The TB-10 Tech roof tiles is the technological evolution in the large size S-interlocking tile format. We have made improvements in the manufacturing and development process to give the roof tile even greater definition and make it completely watertight. Ideal for architectural projects anywhere in the world.

● Adapts to various batten spacings.

● Longitudinal and transverse double fit.

● Curved tile aesthetic.

The S-Interlocking TB-10 Tech roof tiles has obtained the important French Certification AVIS TECHNIQUE CSTB.

the certified characteristics for the NF Terracotta tiles are : Structural faults, the geometric characteristics , resistance to flexural strength , impermeability , frost resistance for all products made with red mixture. AFNOR Certification: 11 rue Francis de Pressensé // 93571 LA PLAINE SAINT-DENIS CEDEX //www.marque-nf.com

Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site.

A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE – EN 1024.

Type: Double lateral overlapping and double longitudinal overlapping. Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

(*) Check pitch pannel according to the roof length and the geographical area.

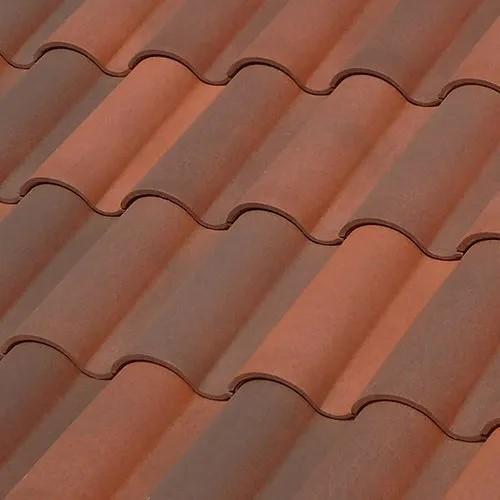

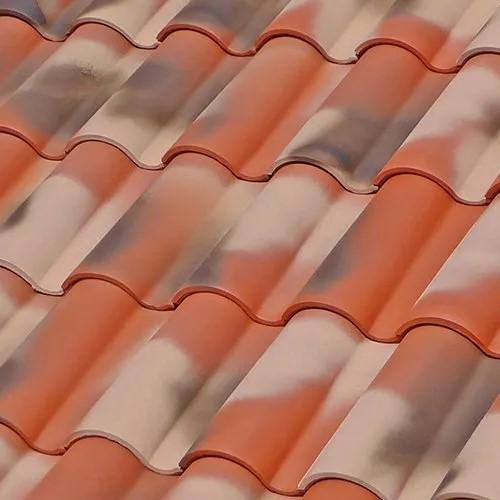

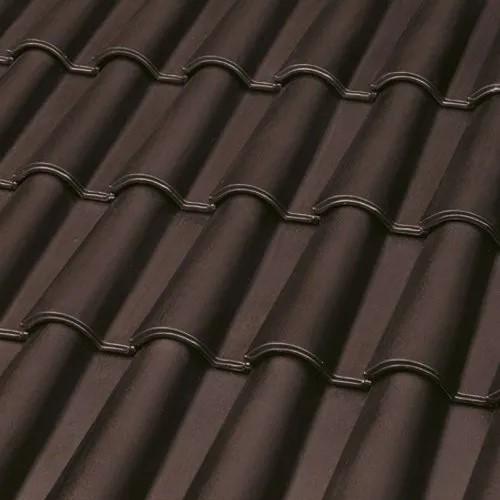

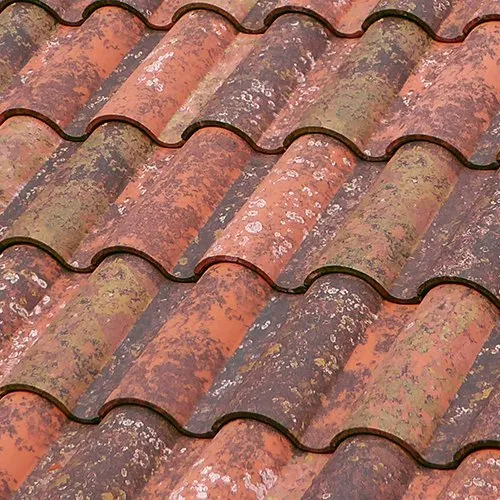

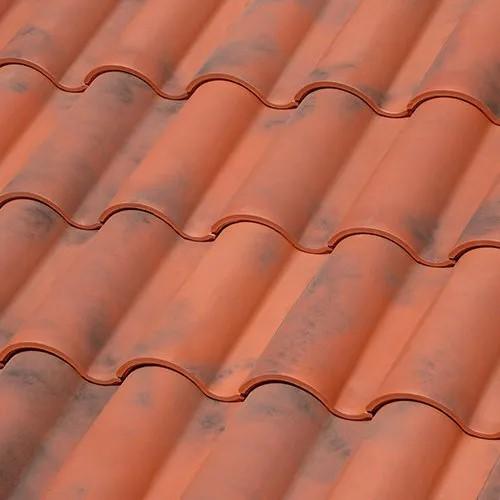

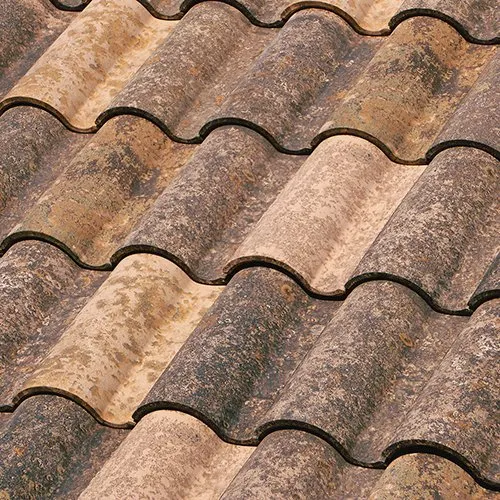

羅馬瓦 TB-10 TECH適用顏色
	TB-10 TECH

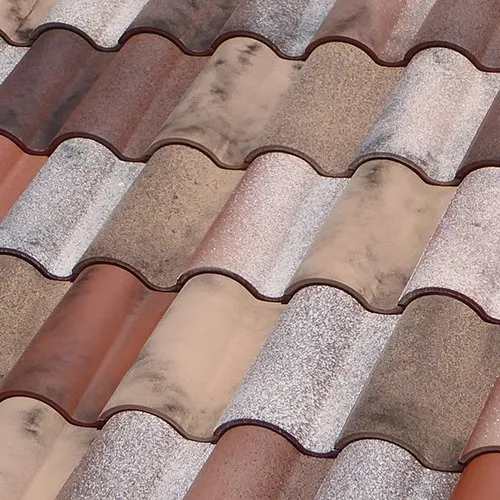

◉ 百年系列

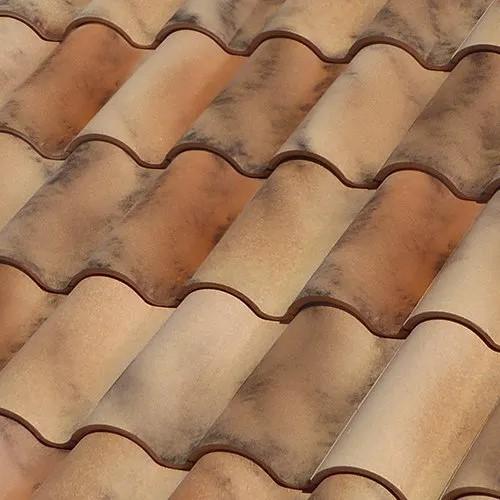

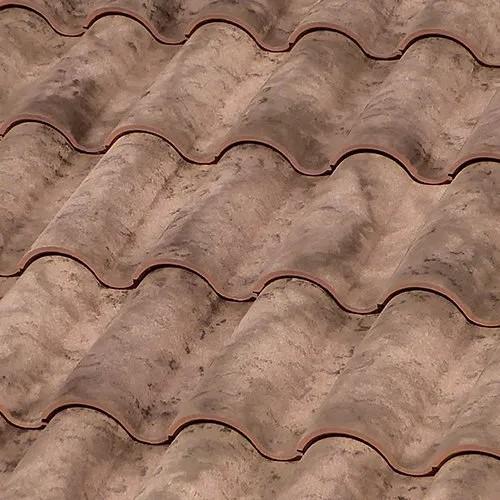

高原紅	松林	風華	秋原

◉ 單色系列

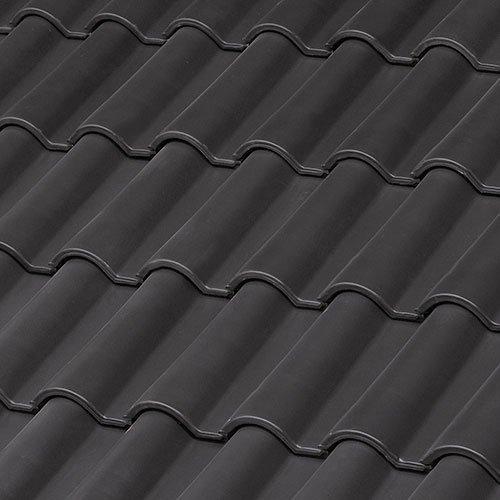

石墨黑	咖啡

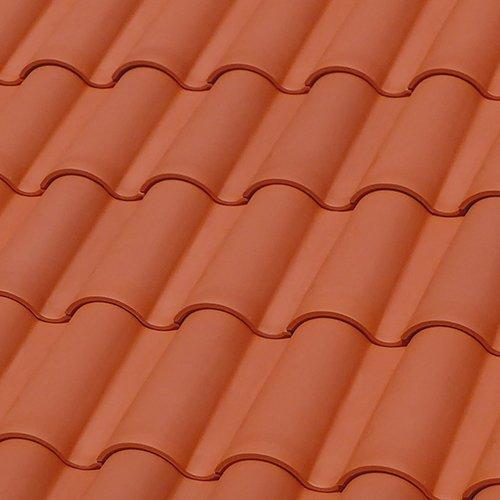

◉ 大地色系列

百年紅	熏紅	楓丹	古舍

古堡	淡秋色

羅馬瓦 TB-10 TECH適用配件
	TB-10 TECH

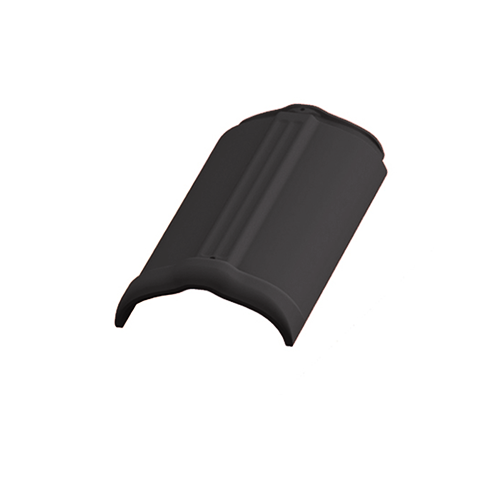

M型脊瓦

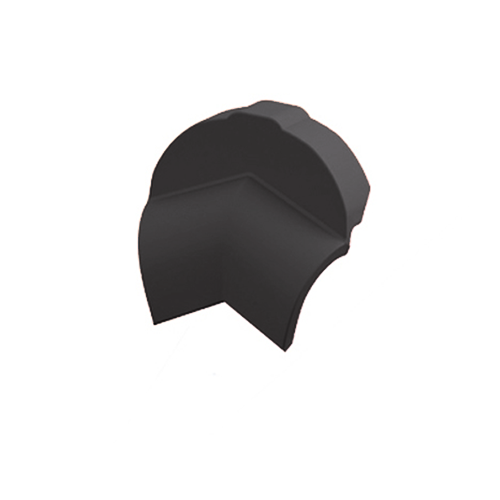

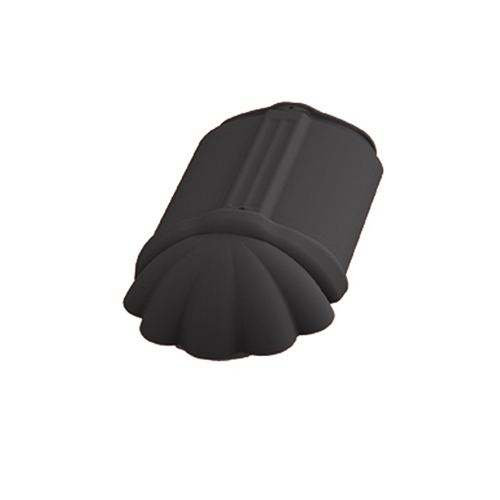

M型脊瓦	M型脊瓦頭-三角	M型斜脊瓦頭-鳥嘴	M型斜脊瓦頭

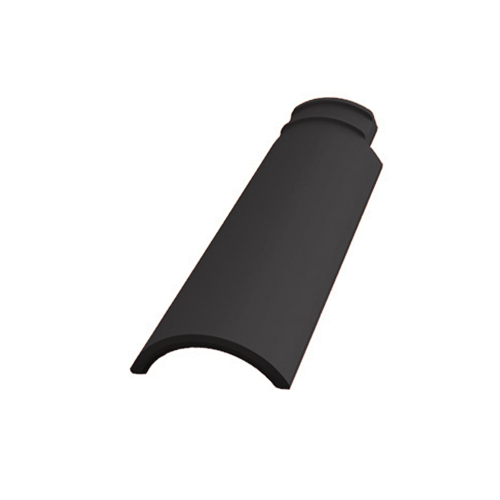

C型脊瓦

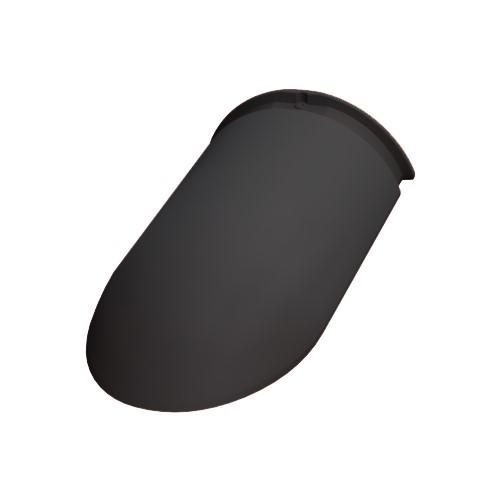

C型脊瓦	C型脊瓦頭-三角	C型脊瓦頭-鳥嘴	C型斜脊瓦頭

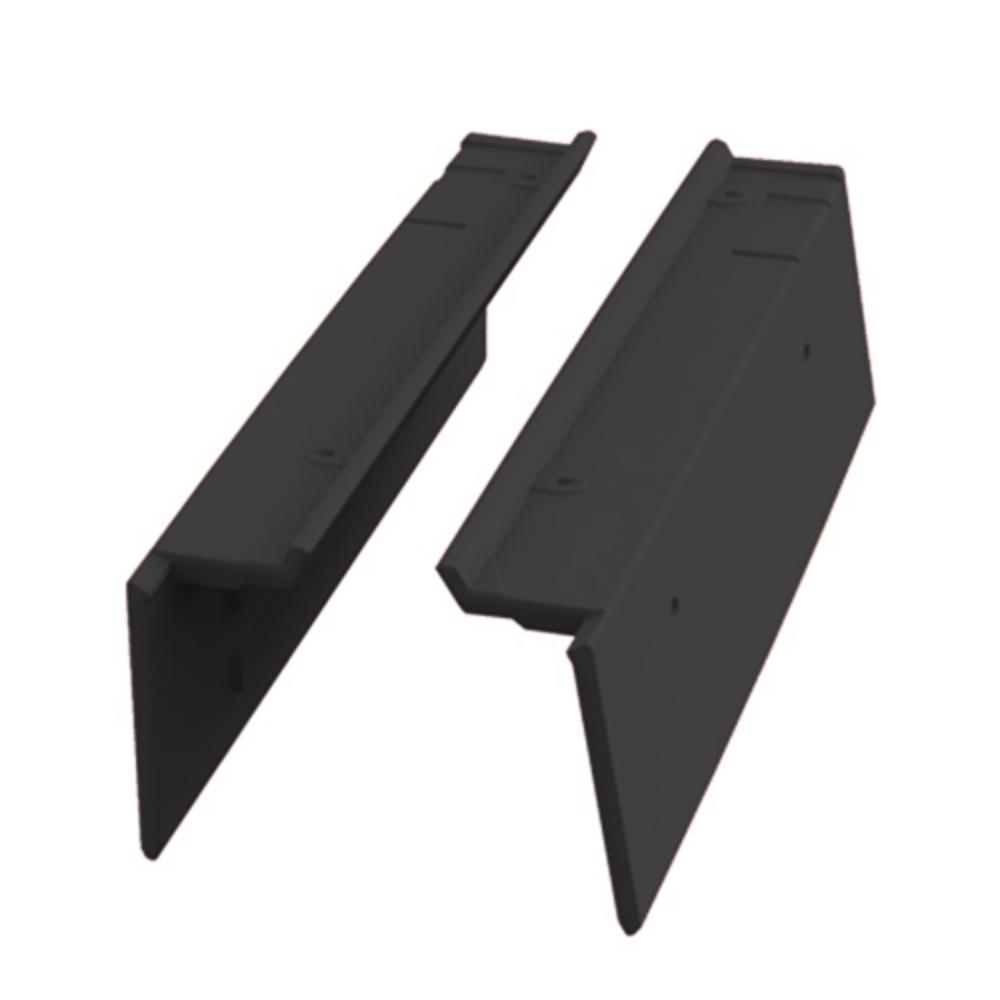

瓦邊

圓角邊瓦	直角邊瓦	共用邊瓦

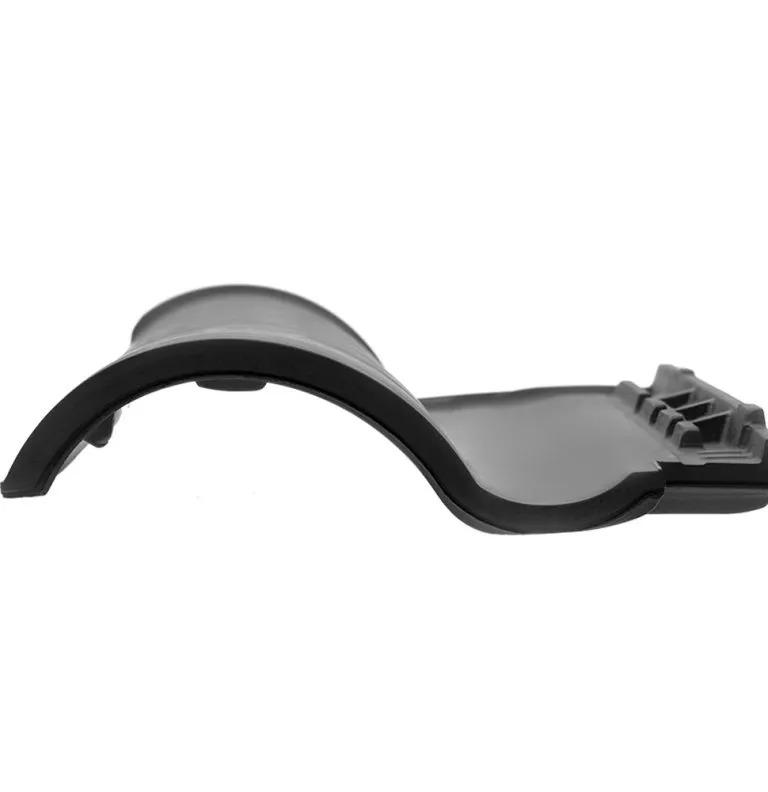

半擋

通用瓦擋

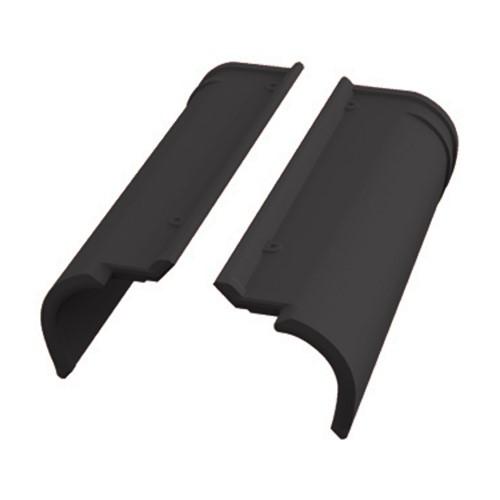

半瓦

TB-10 Tech 半瓦	TB-10 Tech 主瓦+半瓦

透氣瓦

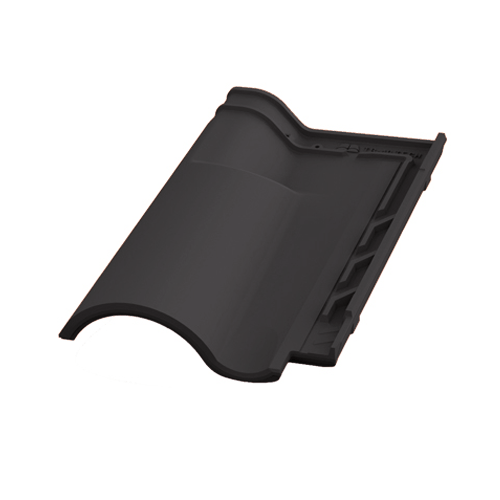

C-45.20 透氣瓦

煙囪座

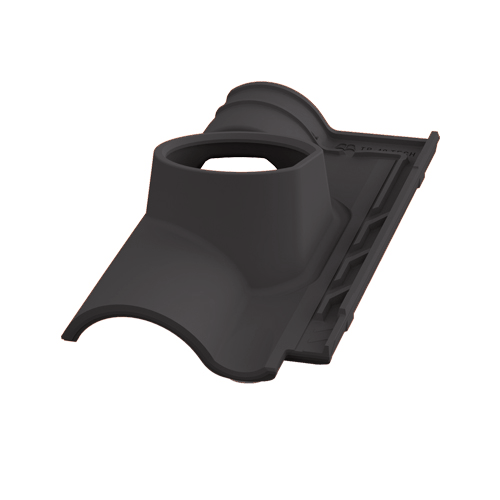

TB-10 Tech 煙囪座

煙囪

140 煙囪	透氣煙囪

裝飾配件

A.圓球	B.橡實	C.松毬	D.清真尖塔

E.加利戈尖塔	F.鬱金香	G.長空塔	H.孔雀鴿
