商品名稱

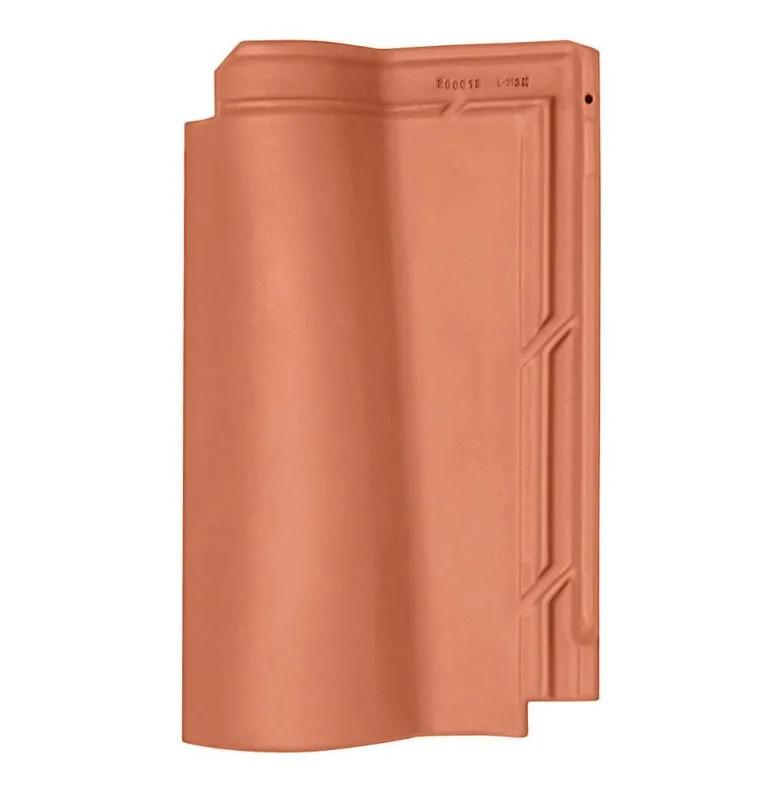

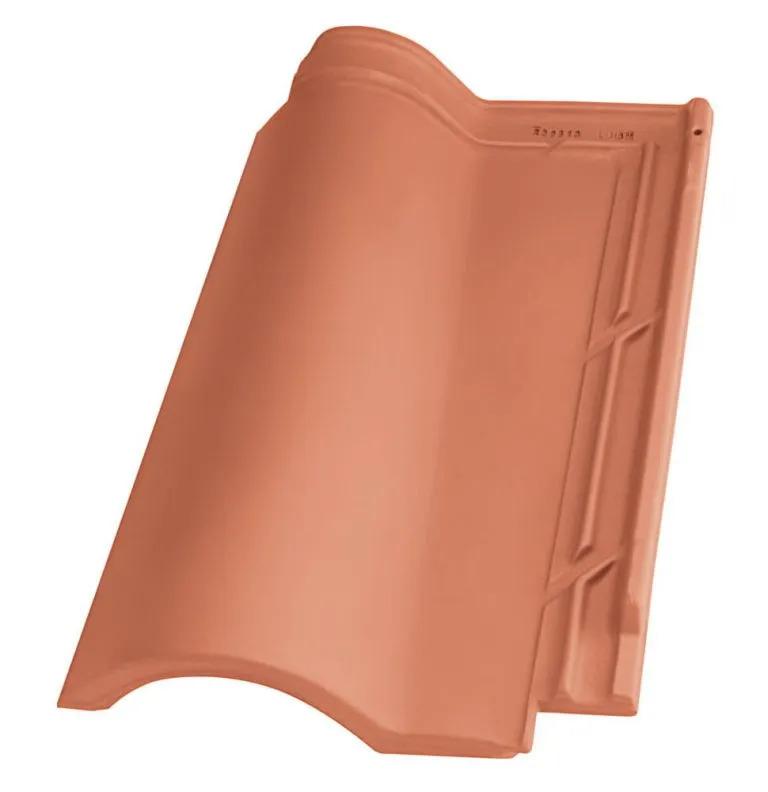

羅馬瓦 TB-12®

Series
此瓦型源於羅馬時期，是南歐及地中海地區最典型的屋瓦

瓦片長度: 439 mm
瓦片寬度: 260 mm
平方米重量: 40.32 /Kg
平方米使用量: 12.8 /片

規格介紹:

瓦片長度: 439 mm

瓦片寬度: 260 mm

平方米重量: 40.32 /Kg

平方米使用量: 12.8 /片

詳細介紹:

BorjaCLASS

TB-12 roof tile is the classic S-Interlocking format by Tejas Borja as one piece high profile roof tile, with multiple discontinuous, especially designed for the tight assembly of the parts aligned in vertical rows and horizontal courses.

With 12 units per sq.m. TB-12 roof tiles are currently the S-interlocking roof tiles most used in residential buildings.

Courtesy of their aesthetic and architectural versatility, S-Interlocking roof tiles are the most commonly used roof tiles across all five continents.

TB-12 roof tile is also available in BorjaBLANC ( selection of special white clay). Ideal for the Mediterranean climate.

The certified characteristics for the NF Terracotta tiles are : Structural faults, the geometric characteristics , resistance to flexural strength , impermeability , frost resistance for all products made with red mixture. AFNOR Certification: 11 rue Francis de Pressensé // 93571 LA PLAINE SAINT-DENIS CEDEX //www.marque-nf.com

Approximate values: If the roof tiles are installed on battens, the useful length must be calculated on site. A tolerance of ± 2% is allowed on the dimensions of the roof tiles according to UNE – EN 1024.

Type: Double lateral overlapping and double Lengthinal overlapping. Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

(*) Check pitch pannel according to the roof length and the geographical área.

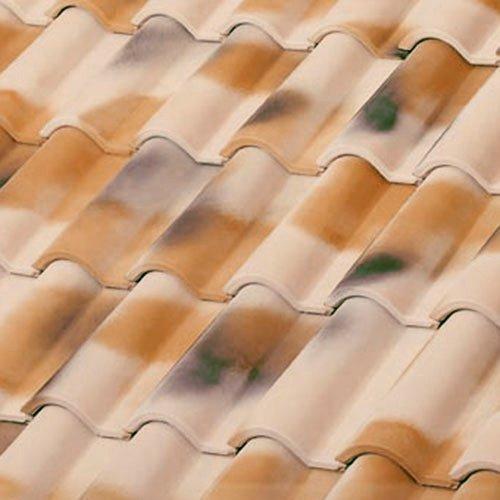

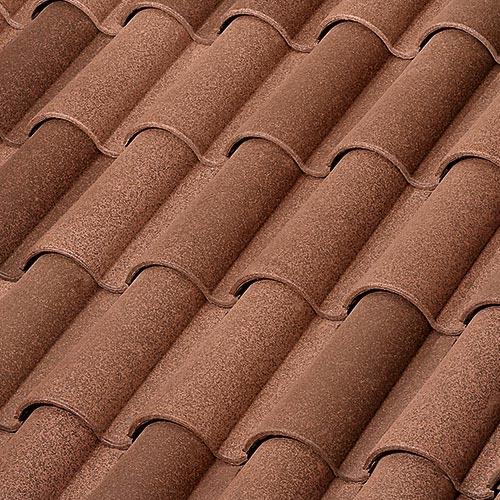

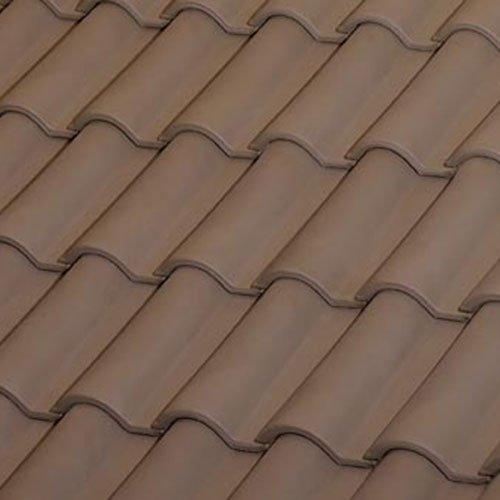

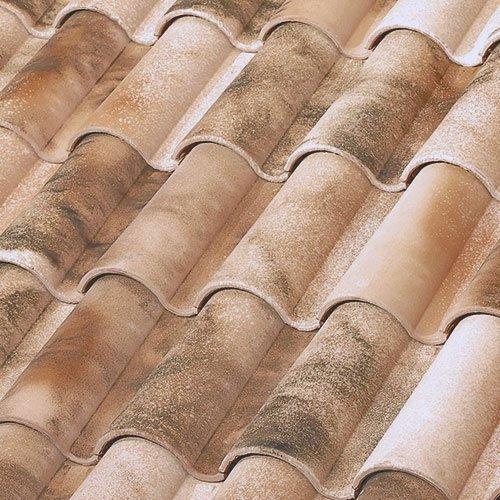

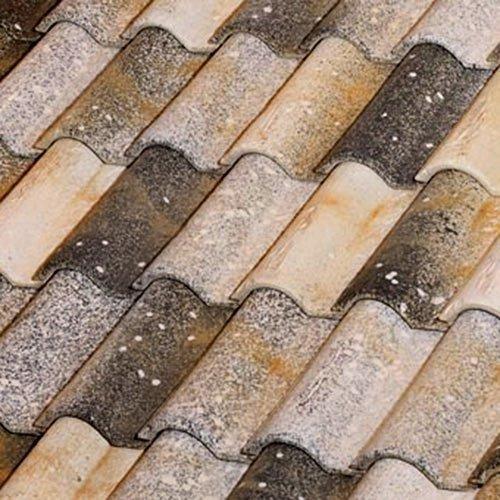

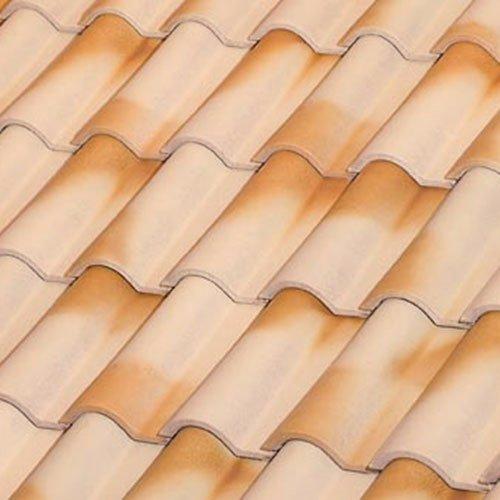

羅馬瓦 TB-12®適用顏色
	TB-12®

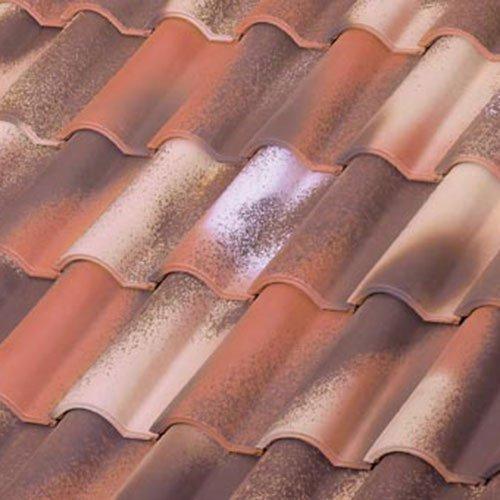

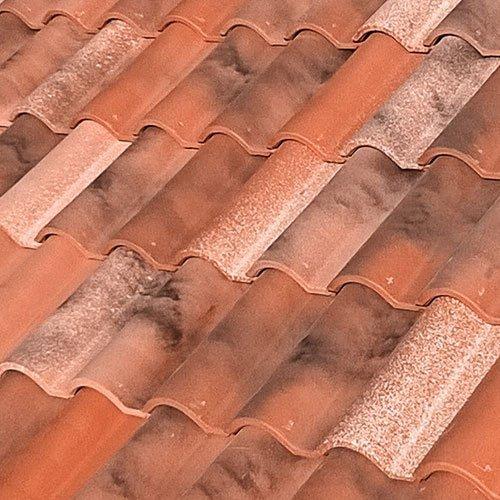

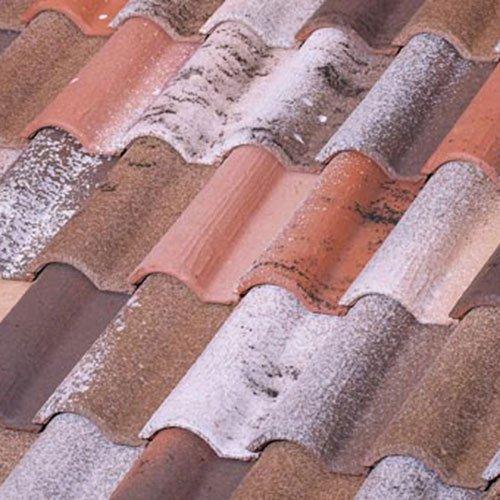

◉ 百年系列

風華	春神

◉ 單色系列

石墨黑

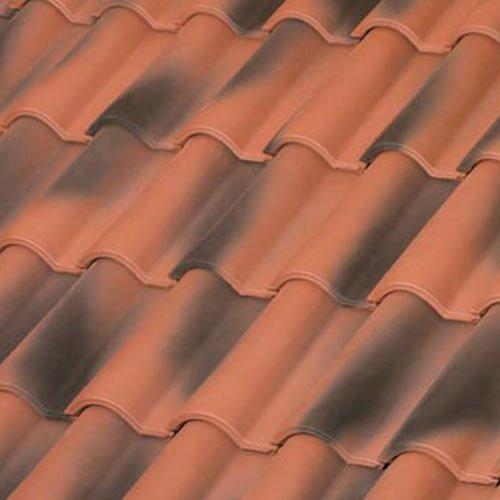

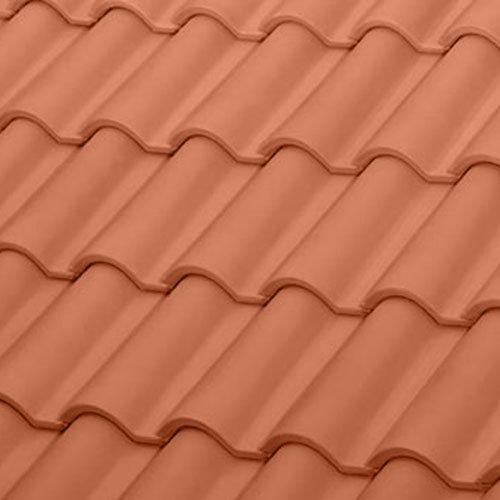

◉ 大地色系列

百年紅	歲月紅	楓丹	古舍

山玫瑰	鄉樸	淡秋色	霞飛

夏艷	咖啡

◉ TAMIZADOS

Blue	Grey	Slate	Green

Brown

◉ GLAZED

Cobalt Blue	Cognac	Garmin	Green

◉ METALLIC

Lead	Cooper

◉ CRYSTAL

Crystal Red

羅馬瓦 TB-12® 適用配件
	TB-12®

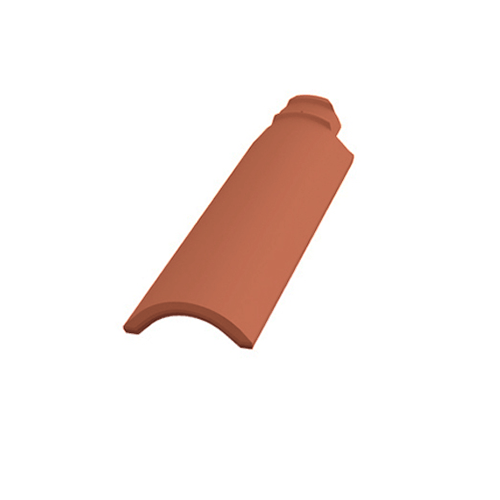

M型脊瓦

M型脊瓦	M型脊瓦頭-三角	M型斜脊瓦頭-鳥嘴	M型斜脊瓦頭

C型脊瓦

C型脊瓦	C型脊瓦頭-三角	C型脊瓦頭-鳥嘴	C型斜脊瓦頭

邊瓦

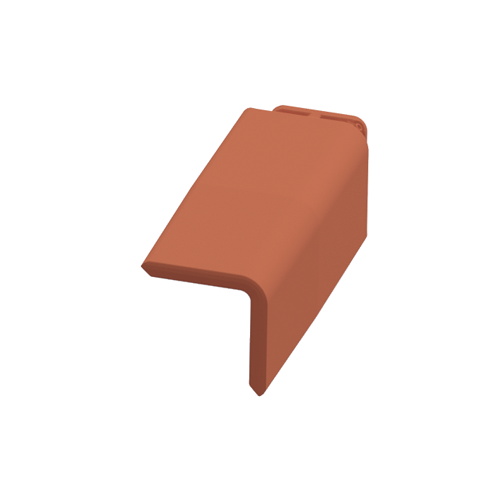

圓角邊瓦	直角邊瓦	共用邊瓦

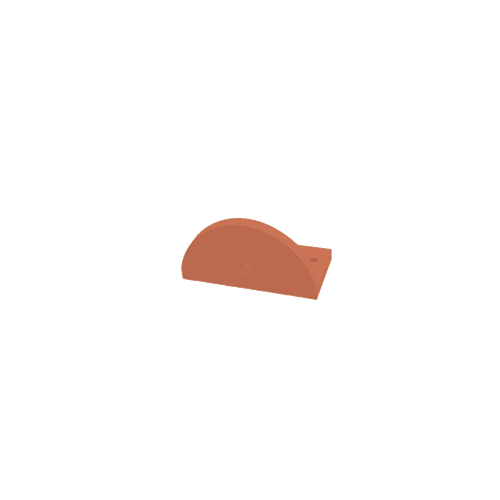

瓦擋

通用瓦擋

半瓦

TB-12 半瓦	TB-12 主瓦+半瓦

透氣瓦

TB-12 透氣瓦

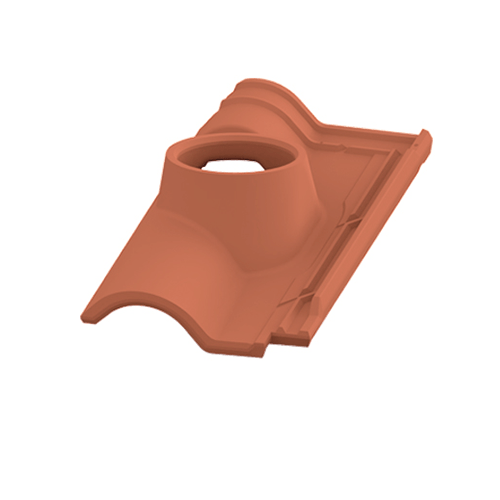

煙囪座

TB-12 煙囪座

煙囪

130 煙囪	透氣煙囪

屋簷鳥止

共用鳥止

裝飾配件

A.圓球	B.橡實	C.松毬	D.清真尖塔

E.加利戈尖塔	F.鬱金香	G.長空塔	H.孔雀鴿
