商品名稱

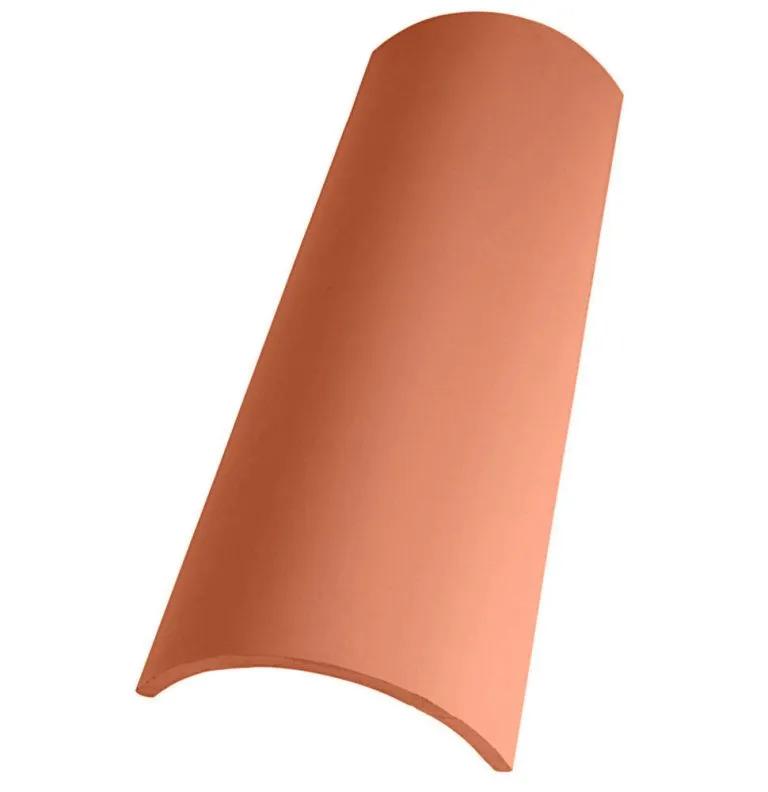

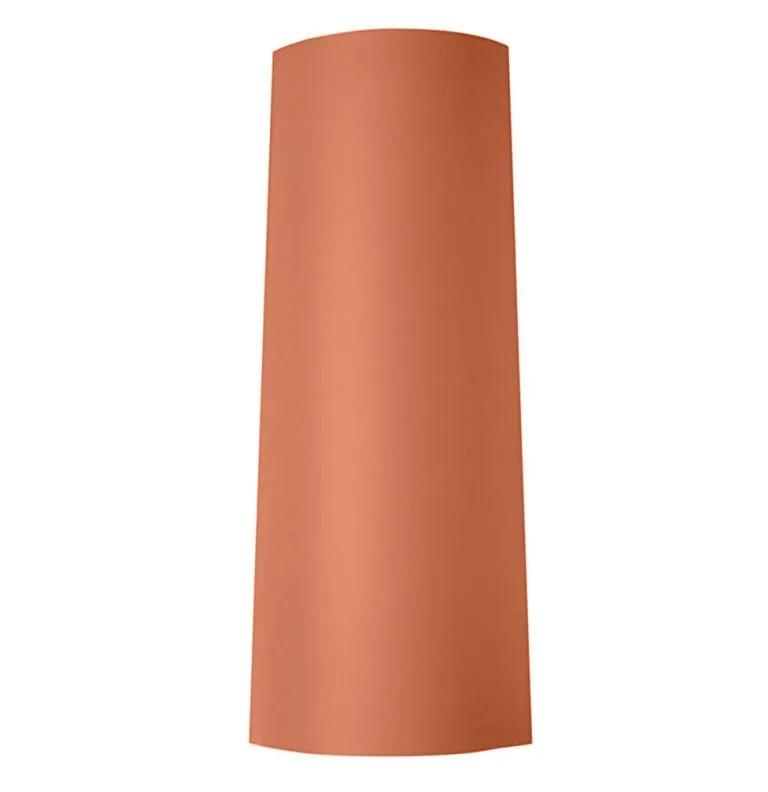

羅馬瓦 C-50.21Celler®

Series

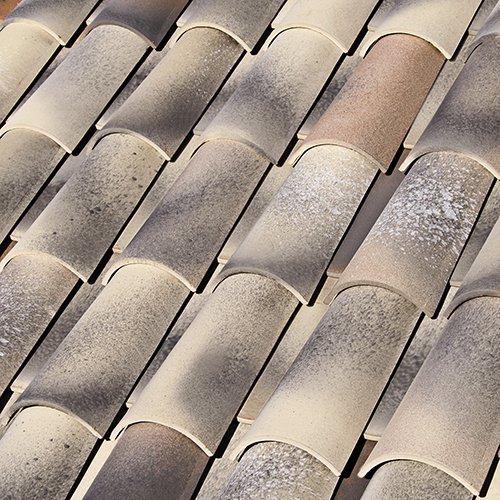

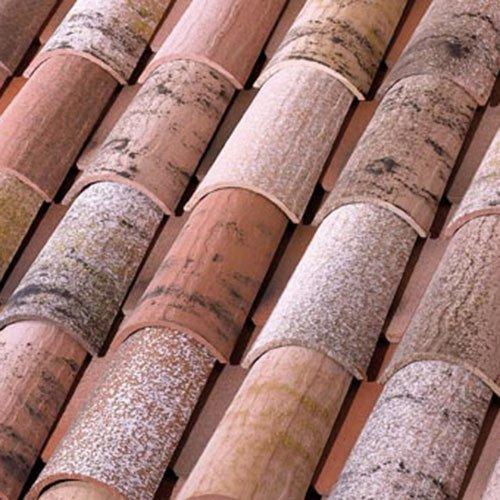

此瓦型源於羅馬時期，是南歐及地中海地區最典型的屋瓦

瓦片長度: 500 mm
瓦片寬度: 210 mm
平方米重量: 43.2 /Kg
平方米使用量: 18 /片

規格介紹:

瓦片長度: 439 mm

瓦片寬度: 260 mm

平方米重量: 40.32 /Kg

平方米使用量: 12.8 /片

詳細介紹:

BorjaCLASS

THE VALUE OF TRADITION

Curved roof tile are the most widely-used roof tile format.

Curved roof tile with smooth curvature profile of 50 cm. in length and 21 cm. wide, which forms a gutter profile roof; its design allows different overlap measures between the parts. The edges tend to be convergent, resulting a wide end and another narrow to facilitate the assembly of pans and covers with the same format.

To ensure their optimal installation, C-50.21 Celler® roof tiles should be installed using the Step 50/45 as a pan and should be fixed to a support previously prepared with a double batten layout.

Curved roof tiles can also be dry installed on under-tile Corrugated bitumen sheet or Fiber cement sheets.

Watch video for fitting instrutions on YouTube.

C-50.21 Celler® roof tiles is also available in BorjaBLANC ( selection of special white clay). Ideal for the Mediterranean climate.

Approximate values: Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

(*) Ideal dry Installation in for Celler® 50×21 and Step Celler® 50×21 roof tiles.

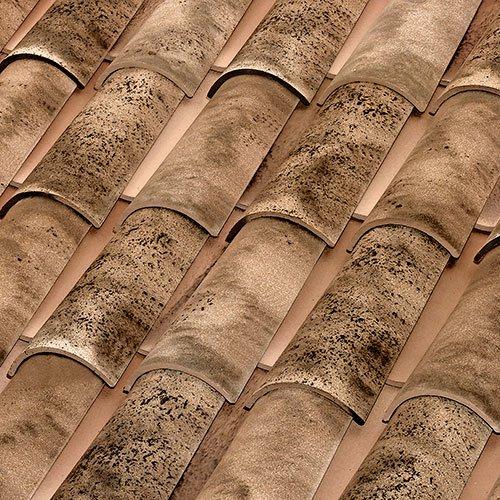

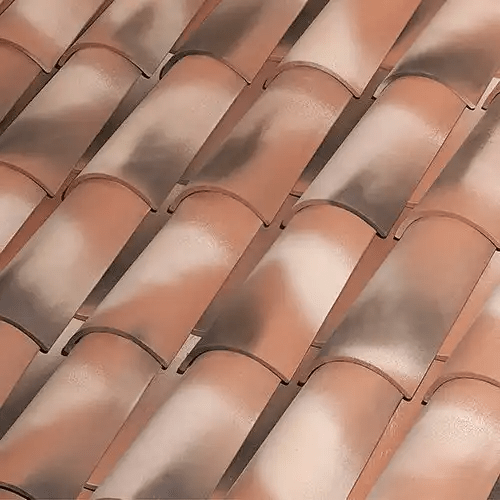

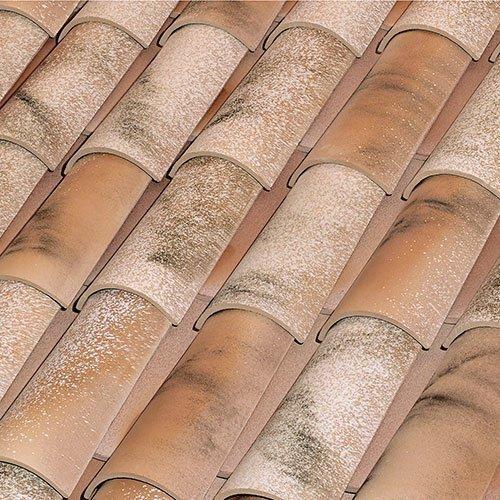

羅馬瓦 C-50.21Celler®適用顏色
	C-50.21Celler®

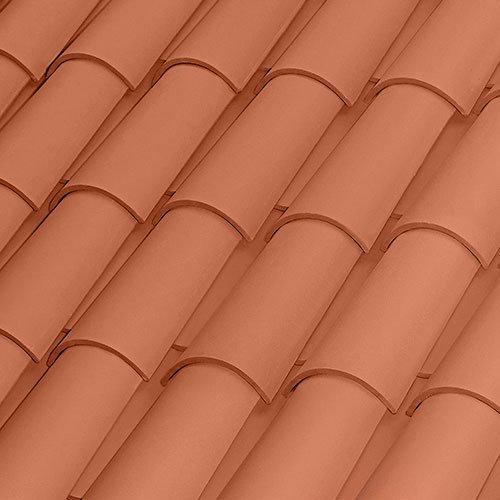

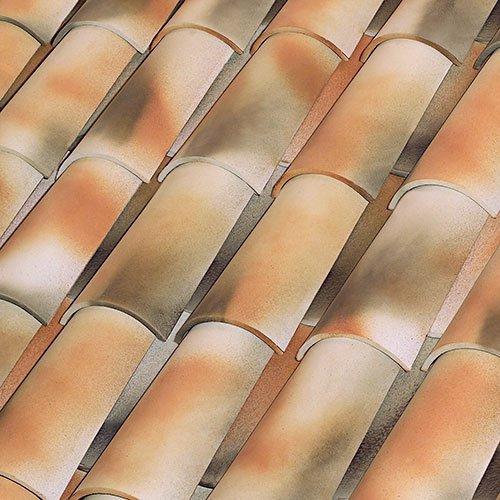

◉ 百年系列

風華	秋原	春神

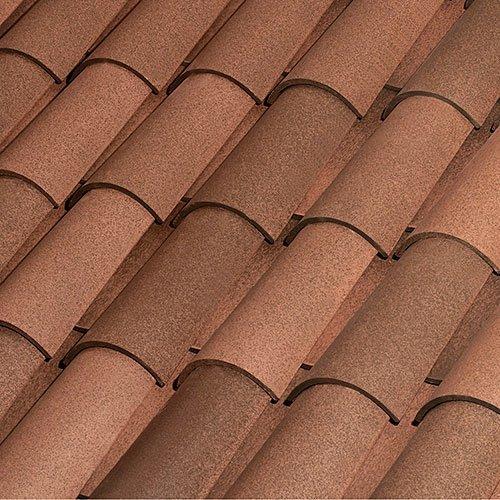

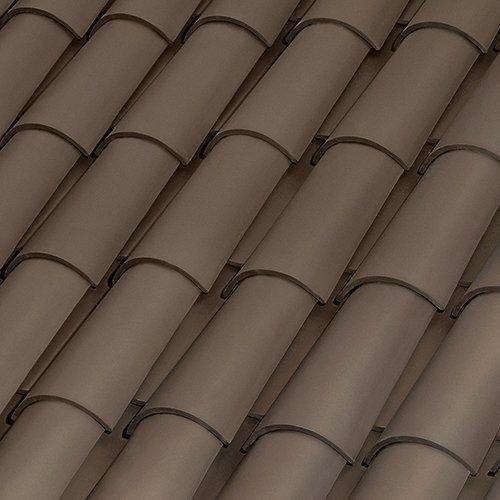

◉ 大地色系列

百年紅	楓丹	古舍	鄉樸

Edetania	淡秋色	Montseny	咖啡

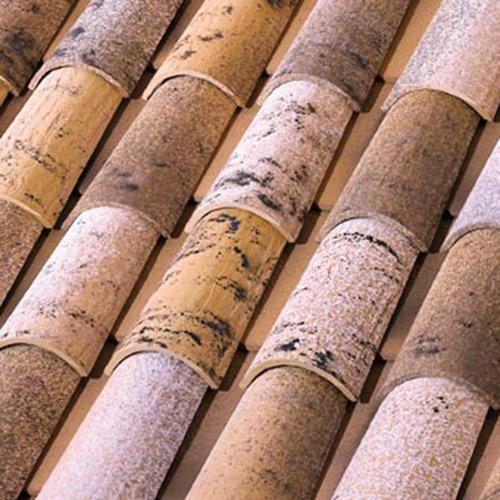

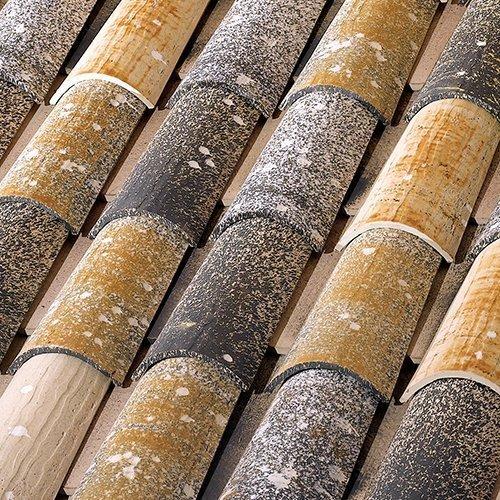

◉ TAMIZADOS

Blue	Grey	Slate	Green

Brown

◉ GLAZED

Cobalt Blue	White	Garmin	Green

Cognac

◉ METALLIC

Lead	Cooper

◉ CRYSTAL

Crystal Red

羅馬瓦 C-50.21Celler® 適用配件
	C-50.21Celler®

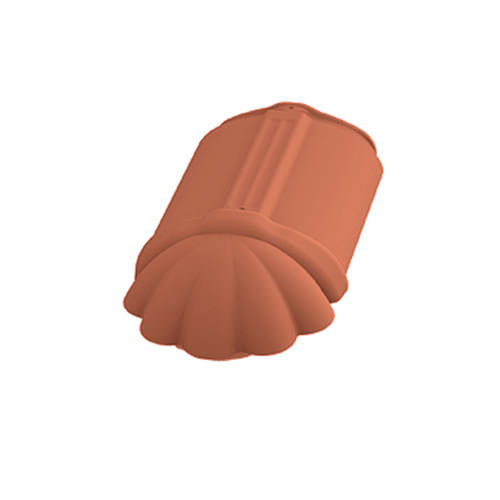

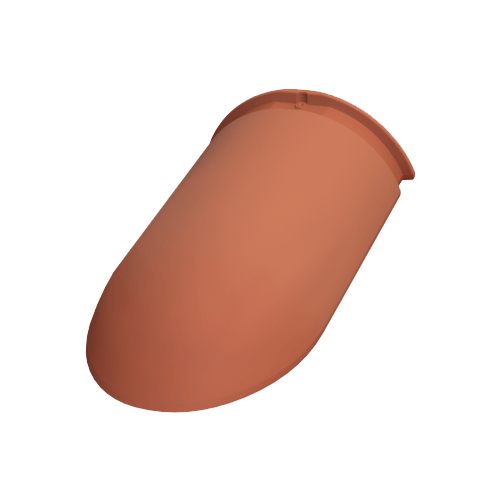

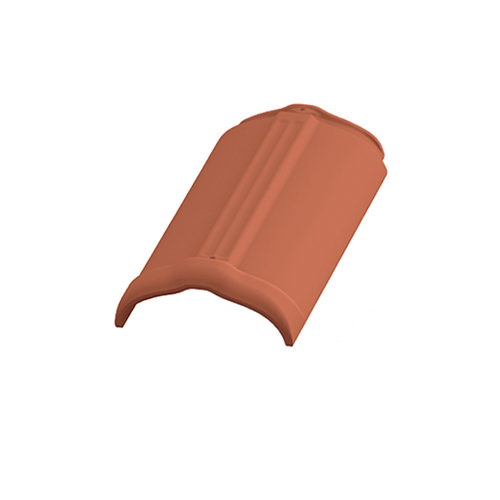

M型脊瓦

M型脊瓦	M型脊瓦頭-三角	M型斜脊瓦頭-鳥嘴	M型斜脊瓦頭

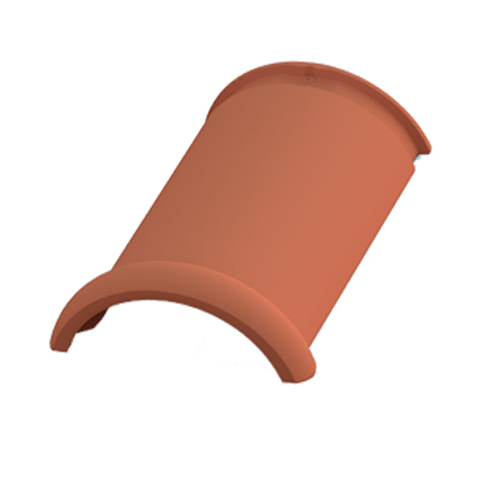

C型脊瓦

C型脊瓦	C型脊瓦頭-三角	C型脊瓦頭-鳥嘴	C型斜脊瓦頭

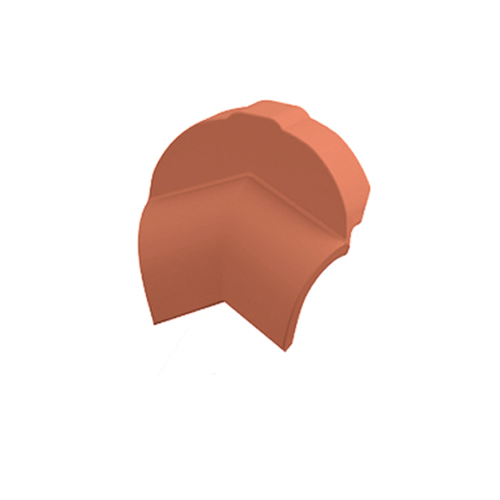

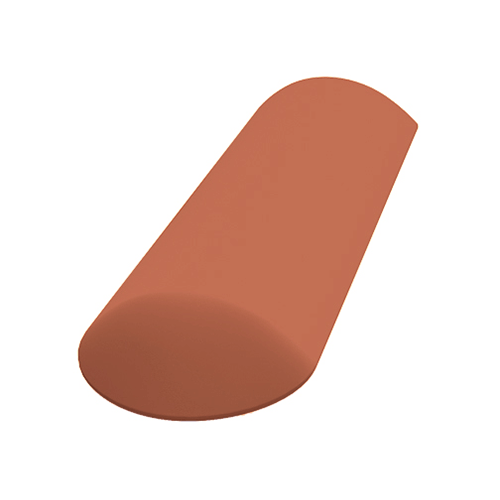

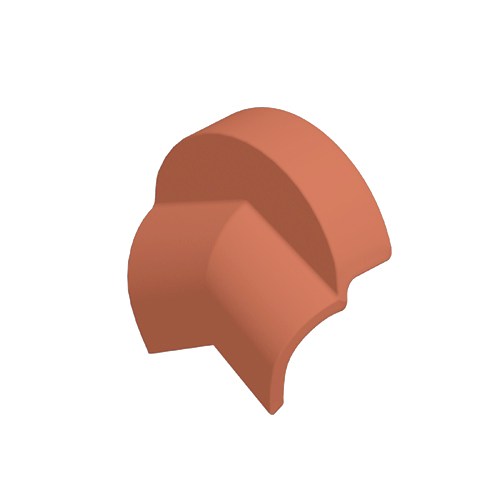

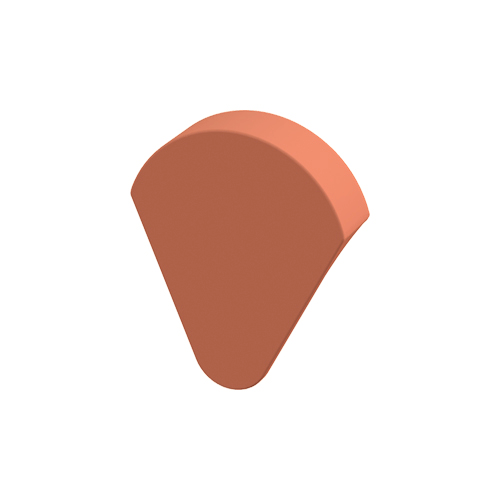

C-50.21脊瓦頭

邊瓦

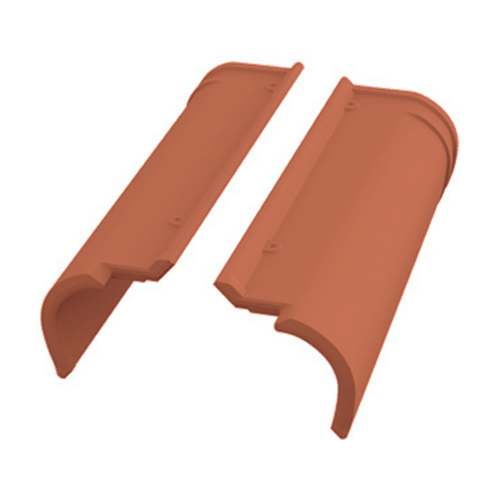

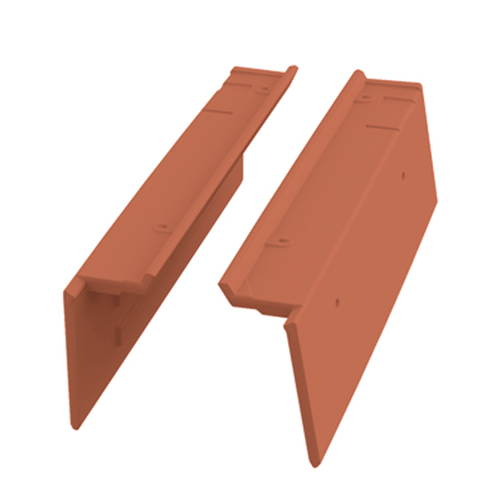

圓角邊瓦	直角邊瓦

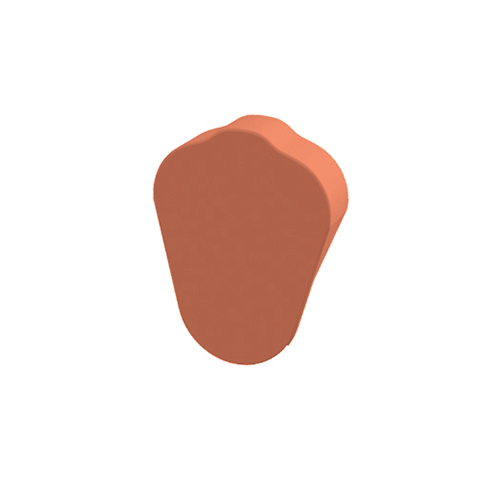

瓦擋

通用瓦擋

透氣瓦

C-50.21 透氣瓦

煙囪座

C-50.21 煙囪座

煙囪

130 煙囪	透氣煙囪

屋簷鳥止

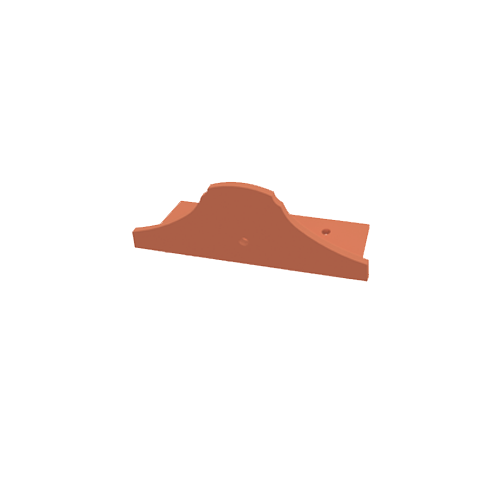

C50.21專用鳥止

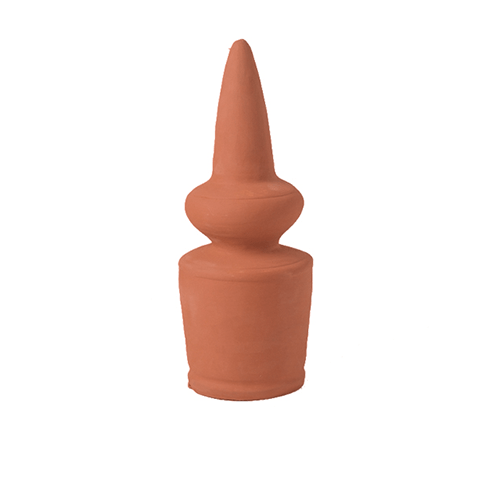

裝飾配件

A.圓球	B.橡實	C.松毬	D.清真尖塔

E.加利戈尖塔	F.鬱金香	G.長空塔	H.孔雀鴿
