商品名稱

羅馬瓦 STEP 50/45

Series
此瓦型源於羅馬時期，是南歐及地中海地區最典型的屋瓦

瓦片長度: 500 mm
瓦片寬度: 205 mm
平方米重量: 25 /Kg
平方米使用量: 10 /片

規格介紹:

瓦片長度: 500 mm

瓦片寬度: 205 mm

平方米重量: 25 /Kg

平方米使用量: 10 /片

詳細介紹:

BorjaCLASS

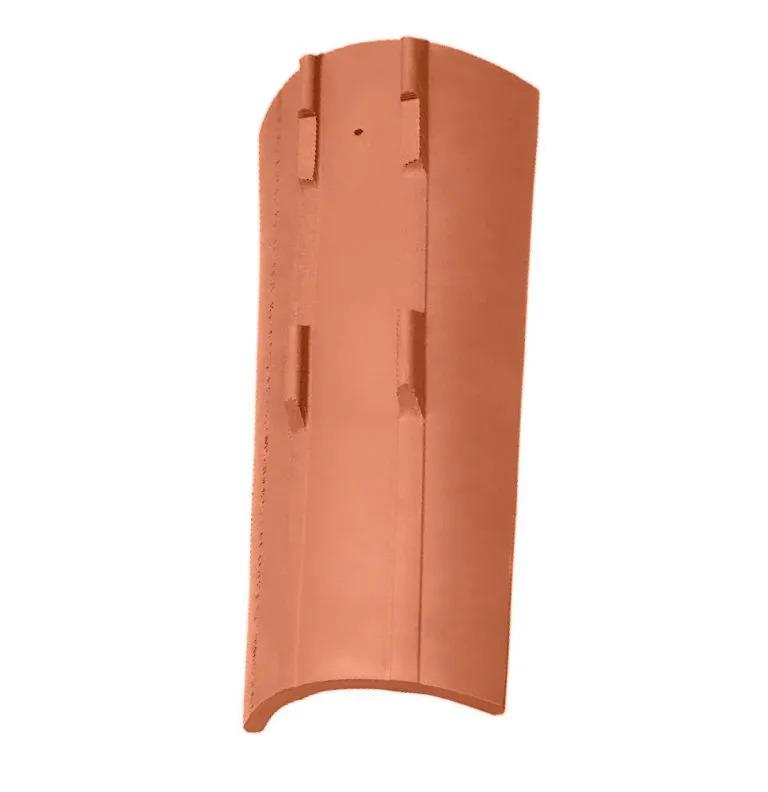

Step 50/45 roof tile with nibs on its underside, is placed in the pan position, essential for the proper drainage of water in the C-50.21 Celler® and C-45.20 curved roof tiles roofs by dry-installed on battens or continued support. It also is equipped with a hole to secure nail or screw through the batten.

To ensure their optimal installation, big format of curved roof tile (C-50.21 Celler® and C-45.20) should be installed using the STEP 50/45 as a pan and should be fixed to a support previously prepared with a double batten layout.

Watch video for fitting instrutions on YouTube.

Approximate values: Installation must comply with Code of practice for the design and fixing of roofs with clay roofing tiles for the region and Tejas Borja specifications.

Note: Step 50/45 roof tile is considered decorative accessory used to complement the roof. Therefore is included in AENOR certificates of the C-50.21 Celler® roof tile (see accessories).

羅馬瓦 STEP-50/45適用顏色
	STEP-50/45

◉ 大地色系列

百年紅	楓丹	古舍	咖啡

Jasp. White	Serrania

◉ TAMIZADOS

Blue	Grey	Slate	Green

Brown

◉ GLAZED

Cobalt Blue	White	Garmin	Green

Cognac

◉ METALLIC

Lead	Cooper

◉ CRYSTAL

Crystal Red

羅馬瓦 STEP-50/45 適用配件
	STEP-50/45

M型脊瓦

M型脊瓦	M型脊瓦頭-三角	M型斜脊瓦頭-鳥嘴	M型斜脊瓦頭

C型脊瓦

C型脊瓦	C型脊瓦頭-三角	C型脊瓦頭-鳥嘴	C型斜脊瓦頭

C-50.21脊瓦頭

邊瓦

圓角邊瓦	直角邊瓦

瓦擋

通用瓦擋

透氣瓦

C-50.21 透氣瓦

煙囪座

C-50.21 煙囪座

煙囪

130 煙囪	透氣煙囪
