Explosion Isolation Flap

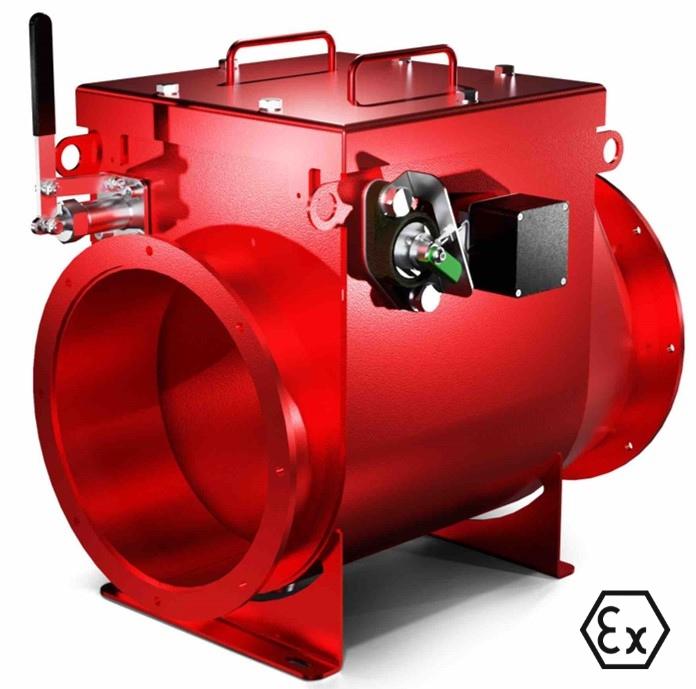

B-Flap I PRO – Explosion isolation flap

The innovated explosion isolation flap B-FLAP I PRO is certified according to EN 16447 and EN 15089. B-FLAP I PRO was tested by an accredited laboratory with emphasis on real-world conditions in the various production processes.

With the innovation, we bring extended installation options for the explosion isolation flap valve. According to current standards and certifications, the explosion isolation flap can be installed in horizontal and vertical pipeline. It can be used in aspiration systems with pull or push flow. B-FLAP I PRO can also be installed on pipelines containing obstacles or elbows between the protected equipment and the place of installation of the explosion isolation flap. A novelty is also higher pressure resistance (pmax) of the isolation flap valve and increased maximum reduced pressure (pred,max) of the protected vessel, from which a potential explosion spreads. According to the latest tests and certifications, the minimum installation distance has been shortened, and the maximum installation distance from the protected equipment has been extended.

The B-Flap I PRO explosion isolation flap can stop the propagation of an explosion caused by processed organic, melting, coarse, and metal dusts up to explosion class St 3 and dusts with very low values of minimum initiation energy (MIE) and temperature (MIT). This new design of the B-FLAP I PRO explosion isolation flap makes it easier to handle during the installation and operational maintenance.

WHERE IS THE RISK?

In piping systems, during material conveying between individual parts of the production technology, initiation source (e.g. hot surface, friction, a spark from equipment failure, etc.) can be easily formed, which in combination with the flowing air and the transported material creates an explosive mixture. The pressure wave and the flame bursting through the piping system can explode and thus destroy the connected technologies or endanger personnel within a close range.

ADVANTAGES

certified according to EN 16447 and EN 15089
suitable for all types of dusts, including metal, up to explosion class St 3
certified for explosive dusts with extremely low values of minimum initiation energy and temperature (MIE, MIT)
applications for inlet and outlet suction routes of filtration systems
suitable for push and pull system
reverse flow application
possibility of installation on horizontal and vertical pipes
possibility of use in a piping system consisting of elbows and / or obstacles
wide range of sizes from DN 100 – DN 800
mechanical equipment without the need for electrical energy and a trigger mechanism
low pressure losses, high pressure resistance
possibility of equipping with a position indicator and / or pollution signalizator
easy installation, inspection, and maintenance
explosion isolation flap valve is locked when closed
standardly equipped with an RPD mechanism
optional possibility to produce in a stainless steel version
