Explosion isolation system

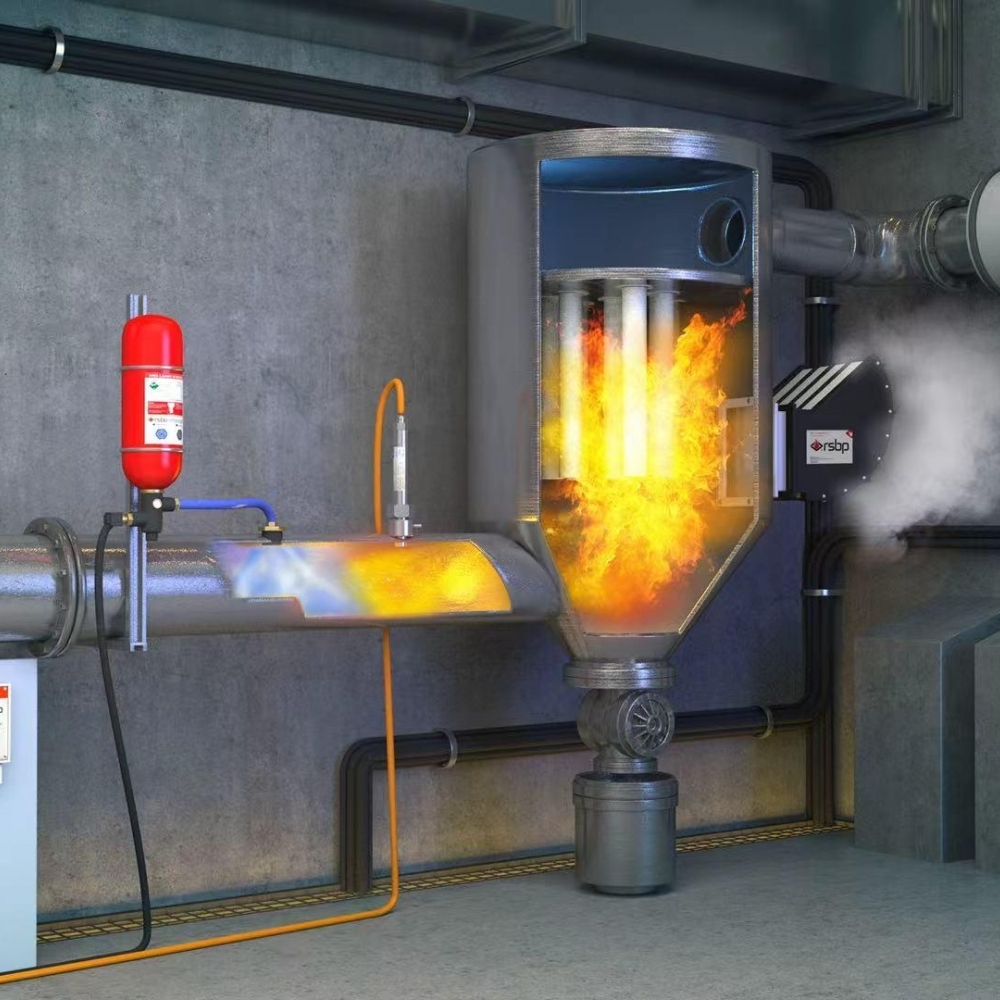

The HRD barrier is an active system that prevents the transmission of an explosion. It releases the extinguishing agent extremely fast into the pipeline and thus stops the increase in pressure. The HRD barrier can also isolate an explosion of dust classified as St 2 dust, light metal dust, gases, and hybrid mixtures. Specially developed pressure and optical detectors constantly monitor the protected zones of the production technology. The DetEx pressure detector and the LumEx 1 or LumEx 4 optical detectors can be used for detection. Activation of the HRD barrier is also possible via the VENT PRO explosion venting device. If an explosion is detected, the detectors transmit a signal to the control unit, which activates the HRD container units. These are equipped with quick-opening valves capable of immediate release of the extinguishing agent into the protected space and thus creating an effective extinguishing barrier. The HRD barrier suitably complements the HRD explosion suppression system used to protect devices. The appropriate combination of these two systems efficiently prevents property damage and protects human lives. This explosion isolation system is certified according to EN 15089 standard.

WHERE IS THE RISK?

Mostly during the transportation of bulk material in pipelines that connects individual parts of the production technology. Initiation (e.g. hot surface, friction, a spark from equipment failure, etc.) can be easily formed, which in combination with flowing air and transported material creates a highly explosive mixture. During an explosion, a pressure wave first blasts through the pipe, followed by a flame. When transferred to subsequent parts of the production technology, secondary explosions may occur, which can have even more devastating consequences due to the turbulence created in the piping system.

ADVANTAGES

quick system response from detection to extinguishing
very short installation distance
independent storage of data from the detector
variability in the use: detectors, control units, and actuators
possibility of use for indoor and outdoor applications
system high reliability
suitable for technologies with increased demands on hygienic requirements (food industry, pharmaceutical industry, etc.)
possibility of installation on equipment with different operating processes (vibration process, high temperature, etc.)

PREVENTS PROPAGATION OF EXPLOSION BETWEEN
